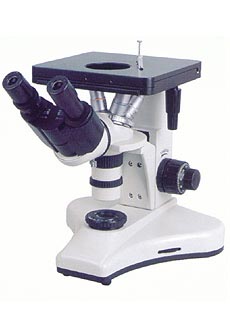

TXS102-01B Binocular Inverted metallurgical microscope

1) 45mm DIN Achromatic Objective: 10X, 100X(S, Oil)

2) Metallurgical plane-scope achromatic objective:40X(S)

3) Wide Field Plane-Scope Eyepiece: WF10X, WF12.5X

4) Wide Field Plane-Scope Eyepiece with 0.1mm cross micrometer:WF10X

5) Micro-ruler: 0.01mm/scale

6) Articulated free binocular h, interpupillary distance: 55-75mm, 45 degree Inclined

7) Total Magnification: 100X-1250X

8) Double Layers Mechanical Stage(200X180mm) with two plates(10 and 20mm)

9) Moving rang X-Y: 70x50mm

10) Coaxial Coarse And Fine Focusing Adjustable Mechanism by rack and pinion with tension adjustment and stage height limited knob

11) Focusing range:25mm

12) Precision:0.002mm

13) Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System with blue, green, yellow and ground glass filters

14) Net Weight/Set: 8kg

15) Package:1 set/carton 42x35x52cm

16) Gross Weight/Carton: 10.5kg
